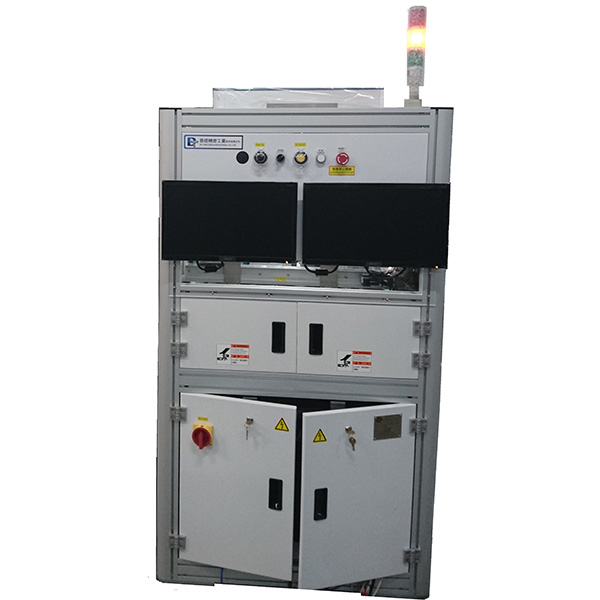

Powder metallurgy forming inspection machine
Powder metallurgy forming inspection machine
Detailed specifications
| Equipment Specifications : | |
| Appearance size of equipment | 950(L)×1000(W)×2200(H)（mm） |
| Equipment accuracy | ±0.03mm |
| Feeding travel stroke | X1 550mm , X2 300mm |
| Movement speed | X 300mm/s , Y 300mm/s , Z 100mm/s |
| Blanking travel stroke | X 550mm , Y 350mm , Z 200mm |
| Movement speed | X 300mm/s , Y 300mm/s , Z 100mm/s |
| The moving speed of the photo | Depends on the product |
| CCD device can | Change according to customer needs |
| Power supply | Simplex 220V , Air pressure 5Kg/cm2 |

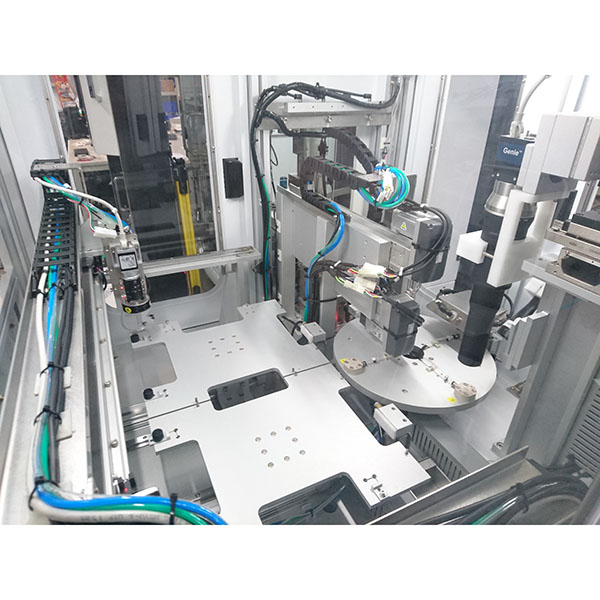

Device function:
1. Good product/NG tray conveying mechanism
2. Clean the vacuuming mechanism
3. Independent vacuum air source switching design of turntable air distribution block
4. Tray disc CCD alignment design in the receiving area
5. Suction nozzle/suction cup suction vacuum value detection
6. The dual screens display the production operation software interface and the visual inspection result of the seam map respectively
