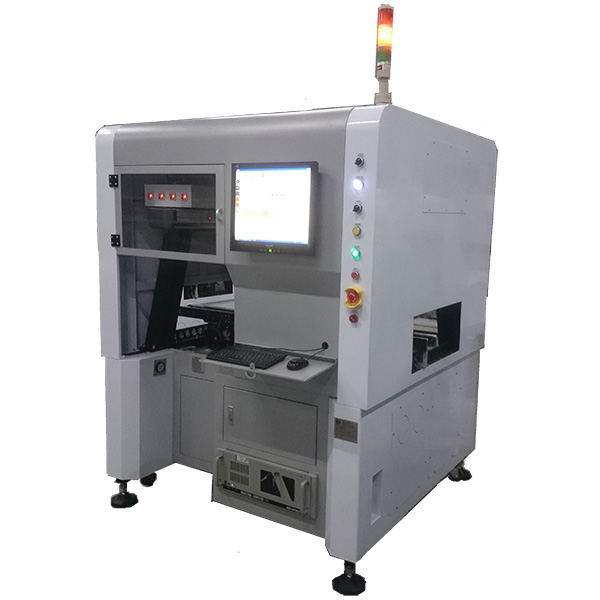

InLine Labeler machine- Feeder for labels
InLine Labeler machine- Feeder for labels
Detailed specifications
| Device Specifications : | |
| Device Dimensions | 1500(L)×1500(W)×1700(H)（mm） |
| Equipment accuracy | ±0.03mm |
| Travel itinerary | X 800mm , Y 600mm , Z 100mm |
| Moving speed | X 200mm/s , Y 200mm/s , Z 100mm/s |
| The scope of work | The scope of work 50-350 mm |
| Allowable plate thickness | 2mm |
| Bidding agency | Feeder |
| Power supply | Simplex 220V , Air pressure 5Kg/cm2 |
Device function :
1. Applicable to the labeling process of PCB boards in the SMT industry, the IN LINE design can greatly improve the labeling capacity
2. Suitable for labeling needs of multi-joint boards
3. With CCD visual recognition system, it can effectively correct the error between labels, PCB boards and positioning points/compensation.
4. The four-module placement head design can quickly respond to multi-angle labeling and facilitate quick replacement
5. Label adsorption detection can prevent leakage and de-labeling.
6. With barcode reading, confirm that the 1D/2D barcode is correct.
7. With Feeder labeling machine, it can correspond to all kinds of label paper.
8. SMEMA standard wiring signal.
